Brinell Hardness Testing Machines, Brinell Hardness Testers

Digital Brinell Hardness Testing Machine Manufacturer, Exporter

Welcome to KELSONS Metallurgical Equipment's, a leading manufacturer and supplier of high-quality Brinell hardness testers. Our testers are designed to provide accurate and reliable results for determining the hardness of metals and alloys. The Brinell hardness test is a popular method used to measure the hardness of a material by applying a known load to the surface of the material and measuring the resulting indentation. This method is ideal for measuring the hardness of metals that are too coarse or irregular for other types of hardness tests.

At KELSONS, we offer a range of Brinell hardness testers to suit your specific requirements. Our testers are easy to use and come equipped with advanced features that ensure precise and repeatable results. Some of the features of our Brinell hardness testers include:

User-friendly controls: Our testers are equipped with easy-to-use controls that allow for quick and efficient testing. High accuracy: Our testers are designed to provide accurate and reliable results every time, ensuring that you get the most precise readings possible. Durable construction: Our testers are built to last, with rugged construction and high-quality materials that can withstand the demands of industrial testing.

Wide range of load capacities: Our testers are available in a wide range of load capacities, from 31.25 kgf to 3000 kgf, allowing you to choose the ideal tester for your specific application. Automated testing: Our testers are available with automated testing features, such as automatic indentation measurement and data logging, to streamline your testing process and improve efficiency.

At KELSONS, we are committed to providing our customers with the highest quality Brinell hardness testers at competitive prices. Our experienced team is dedicated to ensuring that you get the right tester for your specific needs, and we are always available to provide expert advice and support. So, if you are looking for reliable and accurate Brinell hardness testers, look no further than KELSONS Metallurgical Equipment's. Contact us today to learn more about our products and services, and to request a quote.

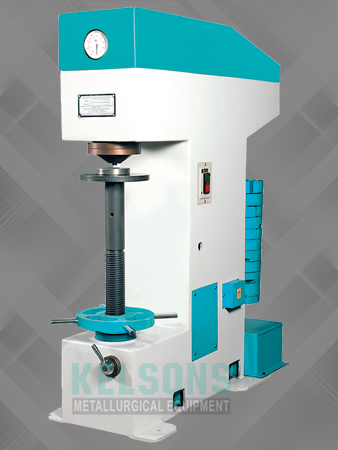

Brinell Hardness Testers

B 3000 (0)

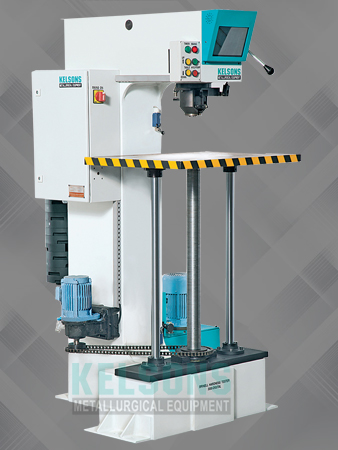

Brinell Hardness Testers

B 3000 (D)

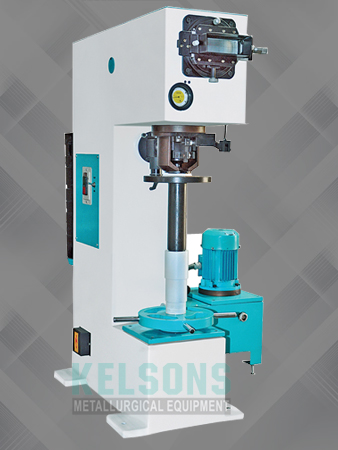

Brinell Hardness Testers

B 3000 (H)

Technical Data : Brinell Hardness
MODEL UNIT B 3000(O) B 3000(J) B 3000(H)
Load 2 500 to 3000 in Stages of 250 500 to 3000 in Stages of 250 500 to 3000 in Stages of 250
Initial Load kgf. Nil Nil 250
Max. test Height mm. 380 254 410
Depth of throat mm. 200 150 200
Max. dept of elevating screw below base mm. 180 0 180
Size of base mm. 370 X 670 255 X 495 370 X 670
Machine Height (Approx) mm. 1185 860 1127
Net Weight (Approx) mm. 500 210 450
Drive Motor HP 0.33 - 415v/p Nil 0.33 - 415v/p
